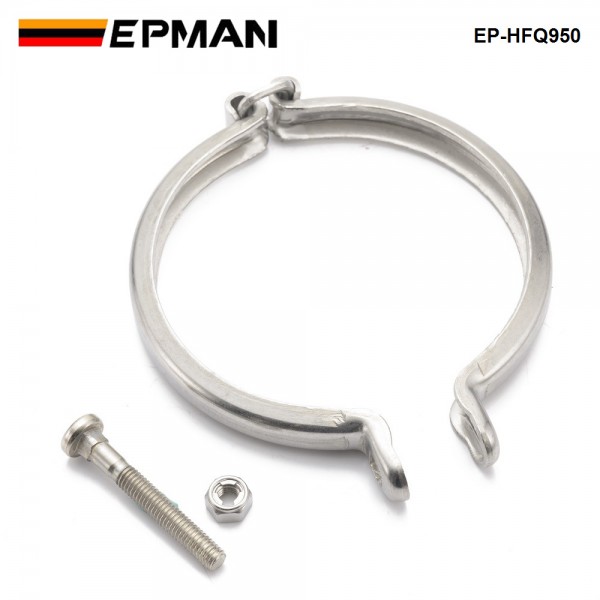

EPMAN Turbocharger Turbine Exhaust Stainless Steel Clamp V-Band CHRA Turbo Flange 95mm Flange for Toyota CT26 CT20 EP-HFQ950
$2.60
Description
You are buying on 100% Brand New of:
EPMAN Turbocharger Turbine Exhaust Stainless Steel Clamp V-Band CHRA Turbo Flange 95mm Flange for Toyota CT26 CT20 EP-HFQ950
Â
Contents:
1 x Turbine Housing Clamp (includes fixing bolt and nut)
Â
Specification:
Torque Rating: 5NM
Outside Diameter: ø109mm
Assembled (Flange)Size: ø95mm
Flange Clamping Thickness: 16mm
Â
Application:
For Mitsubishi TD07 Turbo
For TOYOTA CT20 CT26 Turbo
For T51R, T04Z, AX75F
– Clamp between cartridge and turbine housing (amongst others) with an 95mm V-band flange.
Â
This clamp is used to clamp up the V-band style flanges of the bearing housing and the turbine housing flanges of the CT20/CT26 turbochargers, as well as many other applications with the below dimensions:
Â
These clamps are complete and include fixing bolt and nut.
Correct fitting of a V-band clamp is vital for correct operation and to ensure you do not suffer premature failure.
CORRECT TIGHTENING OF YOUR V-BAND CLAMP:
V-Band clamps are NOT tightened excessively. They are designed to pinch the mating flanges together whilst allowing movement through expansion and vibration. Over-tightening can damage clamps, flanges and, in the worst case scenario, pipe work.
To mount your V-Band clamp, put mating flanges together and fit clamp. Tighten clamp to a torque setting of 3.5 Newton Metres (NM). Then, using a rubber mallet, tap around the mating flanges to allow the joints to fully centre and sit without any unequal load. Â Then increase torque to its final torque setting of 5 Newton Metres (NM).
Further tapping with a rubber mallet to remove any uneven load from the clamp or flange is beneficial, whilst checking the torque setting stays at its rating of 5 Newton Metres (NM).
Â
All items are Brand New unless stated otherwise on the listing. We sell DIY (Do It Yourself) Items with a few exceptions. We take no responsibility in teaching you how to install. Professional installation is strongly recommended.
