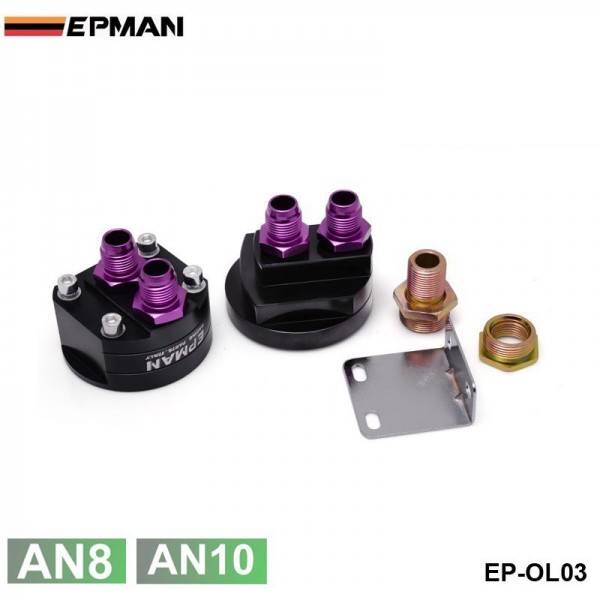

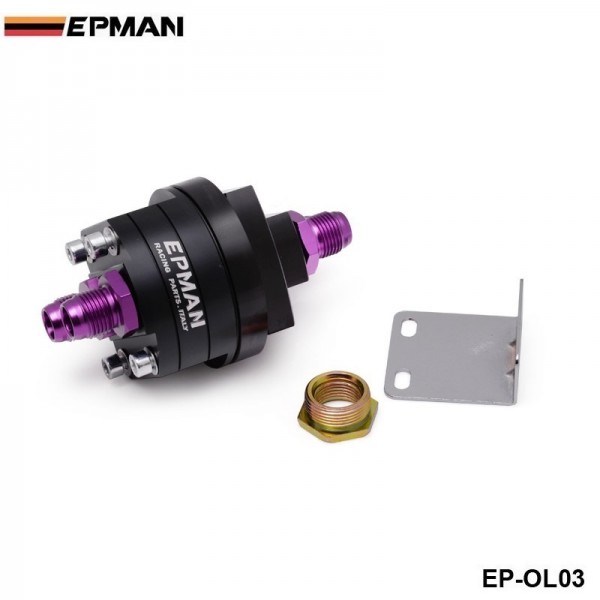

Universal Oil Filter Relocation Kit
& Sandwich Plate Adapter Block EP-OL03BK
The EPMAN Universal Oil Filter Relocation Kit is the ultimate aftermarket upgrade engineered for custom engine bays, tight chassis clearances, and high-demand racing vehicles.
Designed as a premium low-profile bypass bridge, this block optimizes oil routing, simplifies routine maintenance, and prepares your vehicle setup for an external oil cooling core. It delivers maximum reliability under high vibration and peak operating pressure.
Technical Specifications
| Parameter | Specification Standard |
|---|---|
| Main Block Material | CNC-Machined AL6061-T6 Billet Aluminum |
| Fitting Thread Size | AN10 (Male Flare) / Optional AN8 Compatibilities |
| Center Bolt Options | M20 x 1.5 & 3/4″-16 UNF Dual Thread Adapters |
| Surface Treatment | Hard Anodized Black Block with Purple Anodized Ports |
| Sensor Auxiliary Ports | Dual 1/8 NPT Ports for Oil Temp / Pressure Gauge Sensors |
| Sealing Type | High-Temperature NBR Viton Double O-Rings |
What is Included in the Box
Core Functions & Engineering Benefits
1. Seamless Oil Filter Relocation
Moves OEM, factory spin-on oil filters away from hard-to-access crevices, hot exhaust manifolds, and restrictive areas down to open engine areas. Accelerates filter service intervals and minimizes oil spill cleanups.
2. Motorsport Oil Cooler System Link
Acts as a heavy-duty feed and return takeoff distribution manifold. It diverts consistent oil volume to an aftermarket oil cooler radiator core, keeping oil temperatures down and protecting engine bearings during extreme track runs or heavy towing loads.
3. Built-In Diagnostic Monitoring Ports
Pre-drilled and tapped with 1/8 NPT threads. Allows real-time oil data tracking by accepting aftermarket electronic sensors directly into the oil flow path without modifying factory lines.
Application & Fitment Guidelines
Universal fitment compatible with most Japanese, European, and American petrol or diesel engine setups utilizing spin-on style oil filters. Check original engine thread pattern requirements against included center bolts before finalizing assembly. This block serves as a highly versatile foundation for custom plumbing configurations, allowing racing mechanics to route heavy-duty braided lines with zero restriction to optimal cooling zones.
Notice: Professional automotive tuning installation is highly recommended. O-rings must be lightly lubricated with fresh motor oil prior to torque application to prevent fluid leaks under high operating pressures.
